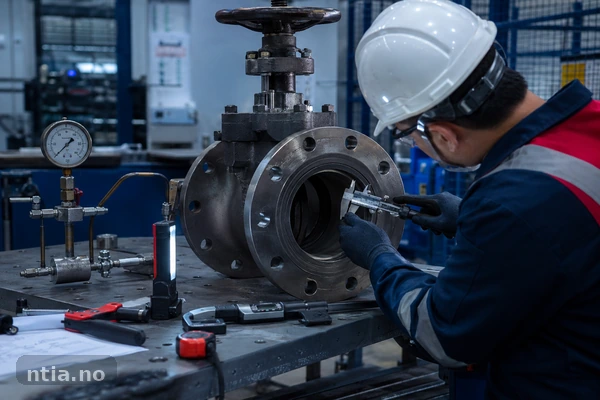

What Is Industrial Valve Inspection & Testing?
Industrial valve inspection and testing is the end-to-end verification that a valve’s materials, dimensions, assembly quality, and pressure integrity meet the purchase specification and applicable codes—supported by traceable, acceptance-grade evidence (certificates, test records, inspection results) you can defend at handover.
This guide gives you the practical “map” most inspectors wish they had on day one: what you check, why you check it, when to check it, and what documents must exist for release.
- Valve inspection is not “one checklist at FAT.” It’s a lifecycle: incoming → in-process → assembly → testing → preservation → dossier release.
- Testing proves different things: shell/hydro tests pressure containment; seat leak tests sealing; functional checks verify operation.
- Acceptance is only meaningful when tied to a standard (e.g., API 598 vs ISO 5208) and to the exact purchase requirements.
- Many valve rejections are caused by documentation and traceability gaps, not only test failures.
- A complete inspection package ends with a valve dossier: certificates + dimensional evidence + test records + NCR close-out.
If you want a structured training path that connects valve types, tests, acceptance criteria, and FAT evidence, see:
Industrial Valve Inspection and Testing Training Course
Valve Inspection & Testing Abbreviations (Industrial Valve QA/QC & FAT Terms)
- API – American Petroleum Institute
- ISO – International Organization for Standardization
- EN – European Norm / European Standard
- FAT – Factory Acceptance Test
- PO – Purchase Order
- ITP – Inspection and Test Plan
- NCR – Nonconformance Report
- CAPA – Corrective Action and Preventive Action
- NDT – Non-Destructive Testing
- MTC – Material Test Certificate
- PMI – Positive Material Identification
What “valve inspection and testing” actually covers
Valve inspection and testing typically includes four evidence layers:
1) Identification and traceability
You confirm the valve is what the PO says it is:
- Tag/Serial/Heat Number Marking
- Body/Bonnet/Trim Materials (As Specified)
- Rating/Class And End Connections
- Corrosion Allowance / Wall Thickness Where Applicable
- Coatings, Preservation, And Packaging Requirements
2) Visual + dimensional verification
You verify the build is physically compliant:
- Key Dimensions (Face-To-Face, Flange Details, End Prep, Bore)
- Surface Condition, Machining Quality, Burrs, Damage
- Assembly Condition (Fasteners, Locking, Travel Stops)
- Orientation And Direction Markings (Especially Check Valves)
A practical, field-ready reference is here:
Valve Inspection Checklist (PDF): Visual, Dimensional & Testing
3) Pressure integrity and leakage testing
You verify pressure boundary and sealing performance:
- Shell/Body Hydrostatic Test
- Seat Leakage Test (Depending On Valve Type And Spec)
- Functional Checks (Open/Close, Torque, Travel, Fail Position Where Relevant)
If you want a clear test separation, start here:
Hydrostatic Vs Seat Leak Tests For Valves
4) Documentation and acceptance-grade reporting
You verify the evidence chain is complete and consistent:
- MTC/EN 10204 certificates and traceability match
- NDT reports (if required) reference correct procedures and calibration
- Pressure test records include correct medium, pressure, hold time, and acceptance criteria
- Nonconformities have documented disposition and closure evidence
For a reporting structure and what “good” looks like, use:
Write A Valve Inspection Report (With Sample Template)
Why valves get rejected (and why it’s often not the “big test”)
In practice, many valve rejections come from predictable categories:
Documentation and traceability failures
- Mismatched heat numbers between body and certificate
- Missing certificates for trim components
- Incomplete test records (no pressure, no duration, no acceptance reference)
- Unclear revision status of ITP/specs used by the vendor
Dimensional and interface failures
- Flange details off tolerance
- Face-to-face not matching the drawing/standard
- Wrong end prep (bevel angle, land)
- Actuator interface or travel stops not as specified
Assembly/condition failures
- Damage on seating surfaces
- Contamination in body cavity
- Incorrect orientation or flow direction marking
- Missing locking devices or nameplates
Test failures (the obvious ones)
- Shell leakage
- Seat leakage beyond allowable class
- Unstable readings or unrepeatable results due to setup issues
A good inspection plan prevents “late surprises” by verifying requirements and evidence gates early, not only at FAT.
The lifecycle: where valve inspection fits from PO to shipment
A useful way to think about valve inspection is as a sequence of gates that progressively reduce risk:
Gate 1 — Incoming materials / traceability
Before machining and assembly lock in the risk, verify:
- Material certificates are present and match heat markings
- Identification is durable and compliant
- Critical trims and pressure-bearing components have traceable evidence
Gate 2 — In-process dimensional control
When features are still correctable:
- Verify key dimensions and interfaces
- Verify coating prep (if applicable) before final coat
- Confirm any required NDT is planned and properly referenced
Gate 3 — Assembly readiness
Before testing:
- Verify cleanliness and internal condition
- Verify torque tools / measuring equipment calibration (where required)
- Confirm test procedure and acceptance reference is correct
Gate 4 — FAT / pressure and leakage testing
At FAT you verify:
- Correct test media and test setup
- Correct test pressures and durations
- Correct acceptance standard and leakage class
- Correct test sequence for the valve type and requirements
Gate 5 — Preservation, packing, and release
After passing tests, quality can still be lost:
- Preservation (internal protection, end caps, desiccants)
- Packing that prevents damage and contamination
- Release only after dossier checks and NCR closure
For inspectors, FAT is important—but it should be the confirmation gate, not the first time you discover basic mismatches.
The core test families (what each test proves)
Hydrostatic / shell tests: pressure boundary integrity
The hydrostatic (shell/body) test primarily demonstrates:
- Pressure boundary integrity of the body/bonnet joint and casting/forging soundness (within the limits of the method)
- Absence of gross leakage paths in the pressure boundary
It does not prove seat tightness. That’s a different phenomenon.
Seat leak tests: sealing performance
Seat leakage testing demonstrates:
- Sealing integrity across the seat(s) under specified conditions
- Leakage class compliance as defined by standard/specification
Seat leak tests are sensitive to:
- Surface finish and cleanliness
- Alignment and assembly condition
- Test medium (gas vs liquid)
- Pressure and stabilization time
A clear breakdown (and why both exist) is here:
Hydrostatic Vs Seat Leak Tests For Valves
Functional checks: operation and configuration
Functional checks vary by valve type and actuator setup. They typically include:
- Open/close operation and travel limits
- Indication/position feedback where applicable
- Fail-safe behavior (for actuated valves, where required)
- Torque/thrust checks only when specified (avoid invented acceptance)
Acceptance criteria: why you must tie the test to a standard (API vs ISO)
Two common failure patterns show up repeatedly:
- The vendor tests “to their default,” not the project requirement
- The test record doesn’t state the acceptance basis clearly
If you’re verifying acceptance, you should always be able to answer:
- What standard is used (API/ISO/EN/project spec)?
- Which leakage class / acceptance thresholds apply?
- Is the edition correct (and contractually applicable)?
- Does the ITP reference it explicitly?
A practical comparison that helps you avoid mixed acceptance language:
API 598 Vs ISO 5208: Valve Testing Acceptance Guide
The “inspection spine” most valve FATs should follow
A consistent FAT sequence that avoids rework and disputes typically looks like this:
1) Pre-FAT review (documents and readiness)
- PO/specification and drawings are current and controlled
- Certificates exist and match markings
- ITP steps and test procedures are approved (as required)
- Equipment calibration evidence is available for test instruments
2) Visual and dimensional verification
- Nameplate/marking matches requirements
- Key dimensions are checked and recorded
- Coating and external condition are acceptable
- Cleanliness and internal condition are verified
Use a structured checklist to reduce misses:
Valve Inspection Checklist (PDF): Visual, Dimensional & Testing
3) Testing (shell + seat + functional as required)
- Confirm test setup and medium
- Confirm pressure and hold time
- Confirm acceptance basis (API/ISO/EN/spec)
- Record results clearly and traceably
4) Dossier gate (release only when evidence is coherent)
- Test records complete and signed
- Certificates complete and consistent
- NCRs dispositioned and closed with evidence
- Packing/preservation verified
If you need a clean inspection report structure that supports release decisions:
Write A Valve Inspection Report (With Sample Template)
Common valve failure modes (and how inspection catches them early)
Valve failures in service often trace back to a few families of mechanisms:
- Sealing damage and seat wear
- Improper material selection or mix-ups
- Assembly errors and misalignment
- Debris/contamination and cleanliness issues
- Corrosion/erosion in aggressive service
- Fatigue or poor manufacturing control in critical areas
A detailed breakdown with root causes and what to look for during inspection is here:
Valve Failure Modes & Root Causes — Complete Guide
Inspection doesn’t eliminate all failures, but it reduces preventable ones by validating:
- Correct materials and traceability
- Correct interfaces and dimensions
- Correct test setup and acceptance
- Correct closure of deviations (NCR/CAPA discipline)
Safety: why pressure testing is a distinct competency
Pressure testing carries real hazards (stored energy, sudden release, projectile risks). Even technically correct tests can become unsafe if:
- Barriers and exclusion zones are missing
- Venting and pressure release are uncontrolled
- Personnel positioning is poor
- Test equipment is not maintained or calibrated
- Procedures are treated as “routine” and shortcuts appear
A practical safety checklist and do’s/don’ts for inspection environments:
Valve Pressure Testing Safety
Evidence package: what auditors and clients actually expect
A valve can pass tests and still fail acceptance if the evidence chain is weak. A defensible valve dossier typically includes:
Identification and scope
- PO reference, tag numbers, quantities
- Valve datasheets / drawings used (revision controlled)
- Compliance statement to applicable standards/specification
Certificates and traceability
- Material certificates (and EN 10204 level where applicable)
- Heat numbers and traceability mapping to valve components
- PMI evidence if specified
Inspection records
- Dimensional check sheets with measured values
- Visual findings and disposition of any damage
- Coating checks where applicable
Test records
- Shell test data (pressure, duration, medium, acceptance basis)
- Seat test data (method, medium, leakage class, acceptance basis)
- Functional checks and results
- Instrument calibration references (as required)
Nonconformities and closure
- NCR log (if any)
- Dispositions (repair/rework/use-as-is with approval)
- Close-out evidence and release sign-off
If you want a reporting template that maps to these expectations:
Write A Valve Inspection Report (With Sample Template)
Common mistakes in valve inspection (and how to avoid them)
Mistake 1: “FAT-only mindset”
If you only show up at FAT, you’re accepting maximum rework risk. Fix by adding early gates: traceability and dimensional control.
Mistake 2: Mixing acceptance standards
Seat leakage acceptance can change significantly with the standard/class. Fix by explicitly referencing the acceptance basis and verifying it matches the PO.
Use: API 598 Vs ISO 5208: Valve Testing Acceptance Guide
Mistake 3: Recording pass/fail without recording “what was tested”
A pass is meaningless if pressure, duration, medium, method, and acceptance basis aren’t recorded.
Mistake 4: Ignoring preservation and packing
A clean, tested valve can be damaged or contaminated before delivery. Treat preservation as a release gate, not a shipping detail.
Mistake 5: Not closing deviations with evidence
Verbal agreements and “we’ll fix later” create disputes. NCRs must be closed with traceable proof before release.
Frequently asked questions
What’s the difference between valve inspection and valve testing?
Inspection includes identification, traceability, visual/dimensional checks, documentation review, and final release decisions. Testing is a subset focused on pressure integrity, leakage, and function.
Do all valves require hydrostatic and seat leak tests?
Not always. Requirements depend on valve type, service, specification, and applicable standard. Never assume—verify the PO/spec and acceptance basis.
Why do valves fail seat leak tests even after passing hydro tests?
Hydro tests verify pressure boundary integrity; seat tests verify sealing across seats. Sealing is sensitive to cleanliness, surface condition, alignment, and test method/medium.
What documents are “must-have” for acceptance?
At minimum: correct identification, certificates and traceability evidence, required dimensional records, required test records with acceptance basis, and closure evidence for any NCRs.
How do I standardize my FAT process?
Use a consistent checklist + a consistent reporting structure tied to acceptance standards and to dossier completeness gates.
Start with: Valve Inspection Checklist (PDF): Visual, Dimensional & Testing
Next steps
If your goal is to inspect valves with confidence—linking valve types, tests, acceptance criteria, safety, and documentation into one consistent FAT workflow—start here:
Industrial Valve Inspection and Testing Training Course
